Castle Creations

10A

In a crawler, basher, or racer you have no worries about over drawing on this little guy. The only application that might need more than one regulator is large scale planes.

Current Output:
Peak: 10 amps
Continuous: <12 volts input = 7 amps* <24 volts input = 5 amps**Ratings are determined with a 5mph airflow on the BEC. Servo connectors are not rated for current in excess of 5 amps.
Output Voltage: Output 5.1 volts out of the package, user may set output voltage from 4.8 to 9 using the Castle Link (sold separately).
Input Voltage: 5v to 25.2v (2S to 6S LiPo)
Length: 1.2” (30mm)
Width: 0.6” (15mm)
Height: 0.4” (10mm)
Weight: 0.4 oz (11 grams)

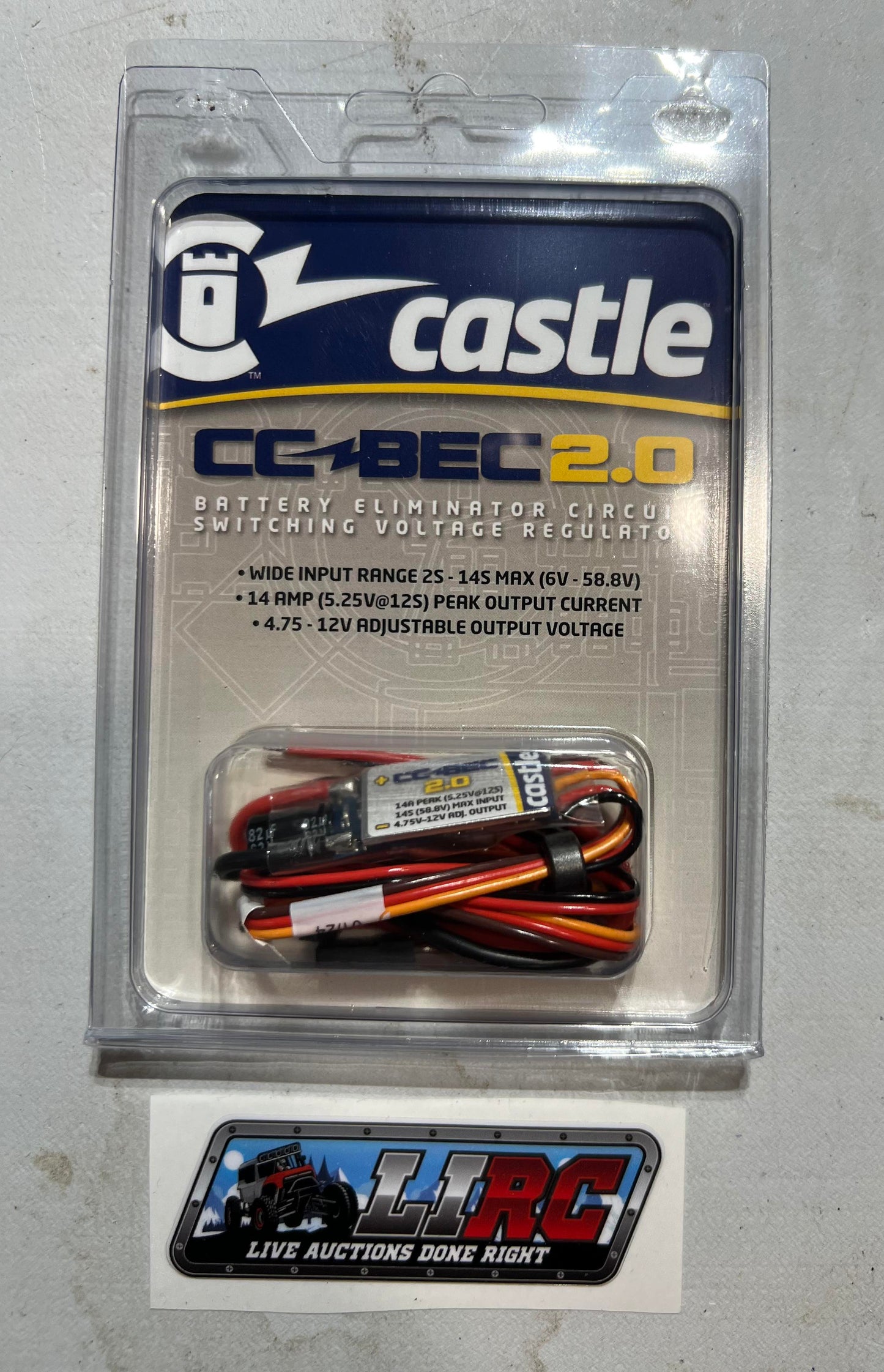

BEC 2.0

The Castle Creations BEC 2.0 has two outputs: signal/power/ground for a servo or winch and power/ground for an accessory.

Output voltage is programmable using a Castle Link Programming Kit.

BEC 2.0 Specifications:

• 14A peak current
• 4.75-7.0V output: 9A continuous
• 7.25V-8.5V output: 8A continuous
• 8.75V-10.0V output: 7A continuous
• 10.25-12.0V output: 6A continuous
• 12S LiPo maximum voltage
• 5.25V default output voltage
• 4.75 to 12V adjustable output voltage
• 1.69" (43mm) length
• 0.56" (14mm) width
• 0.32" (8mm) height

Waterproof BEC 2.0

The Castle Creations BEC 2.0 has two outputs: signal/power/ground for a servo or winch and power/ground for an accessory.

Output voltage is programmable using a Castle Link Programming Kit.

BEC 2.0 Waterproof Specifications:

• 15A peak current
• 4.75-7.0V output: 10A continuous
• 7.25V-8.5V output: 9A continuous
• 8.75V-10.0V output: 8A continuous
• 10.25-12.0V output: 7A continuous
• 12S LiPo maximum voltage
• 5.25V default output voltage
• 4.75 to 12V adjustable output voltage
• 1.37" (35mm) length
• 0.69" (18mm) width
• 0.75" (19mm) height

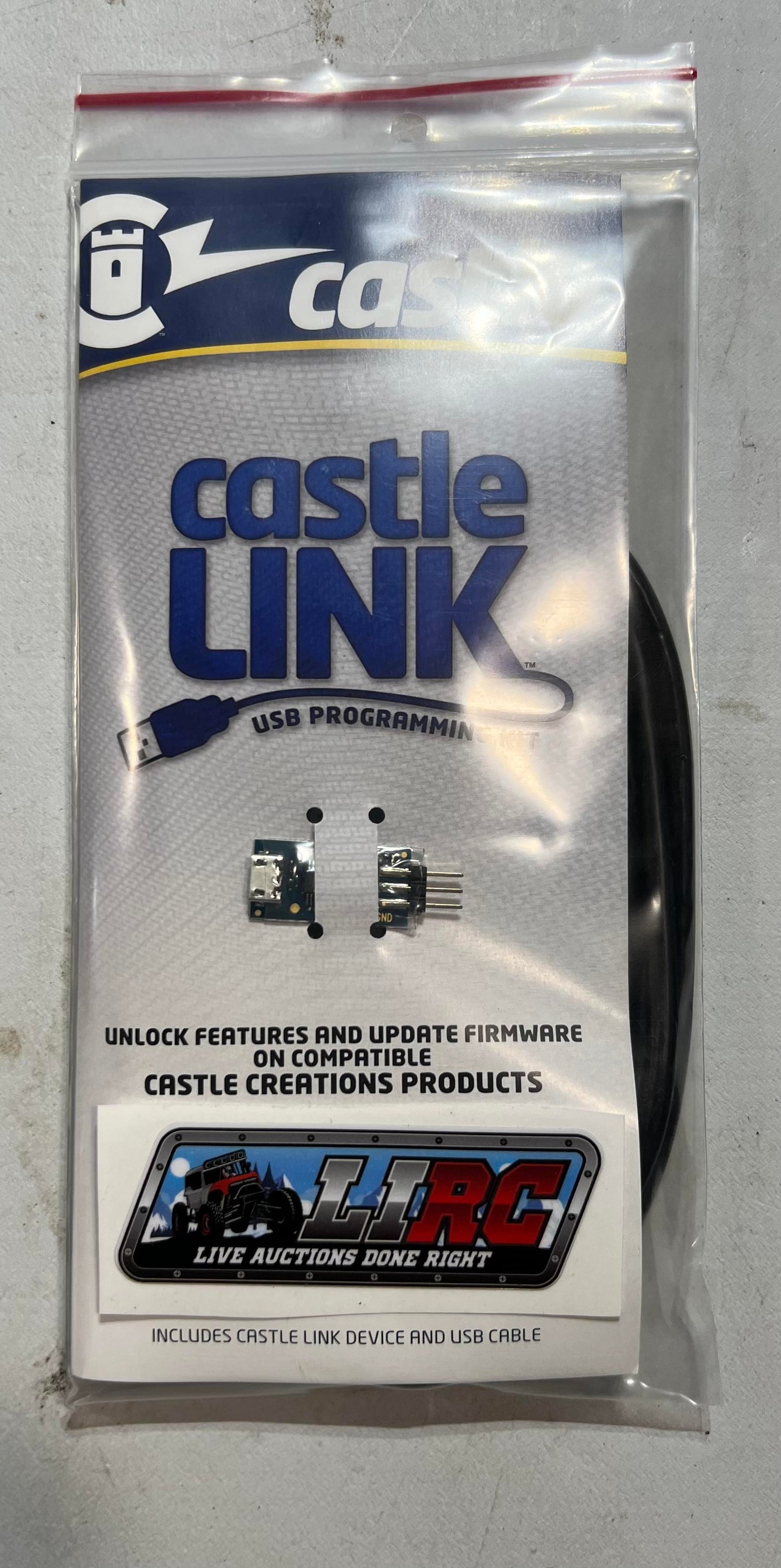

Castle Link USB V3 programming Kit

The Castle Link USB V3 Programming Kit allows you to modify the settings of your Holmes Hobbies BR Mini, BR-XL, or BLE Pro* ESC or Castle Creations ESC and BEC using your PC and Castle Link software.

For full and up-to-date details, please visit the official Castle Link USB Programming Kit page.

*BLE Pro is discontinued due to hardware/platform constraints.
