Dlux UTB18 Parts

Parts by Dlux Fab made compatible for the Axial UTB18.

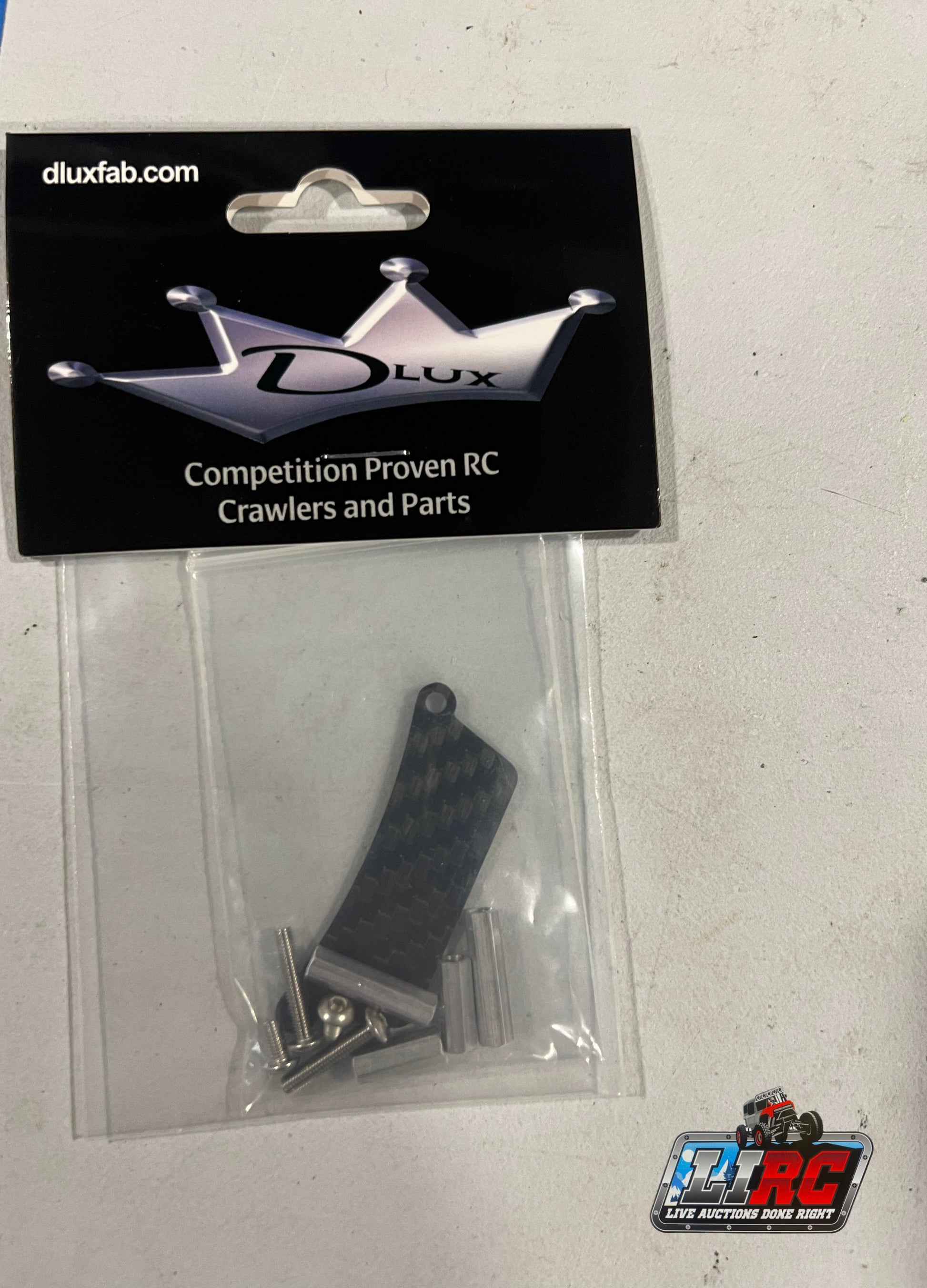

Behind-the-servo Battery Mount

Carbon fiber bracket to mount off the rear of the servo mount, for easy battery placement.

Use rubber bands, velcro, double-sided tape, or a combination of the above.

Includes 1/2" and 3/4" stand-offs for low-pro and standard-sized servos.

Also includes 3mm screws shown.

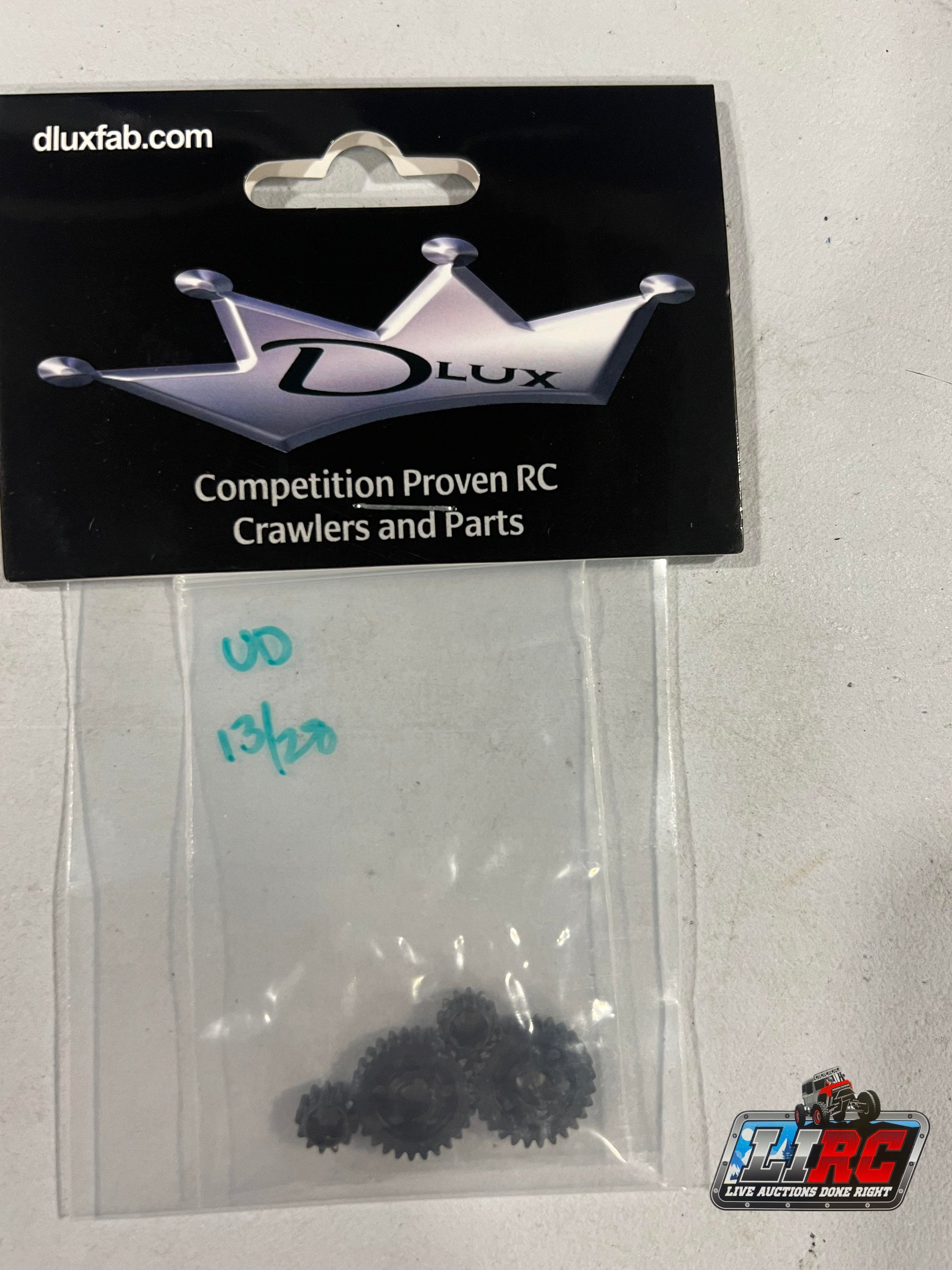

Underdrive Portal Gears

Heat-treated portal gears for the mini Capra UTB18

Choose from overdrive or underdrive gears. Use both for ~32% overdrive total

16/25 = 10.38% overdrive recommended for front axle

13/28 = 21.63% underdrive recommended for rear axle

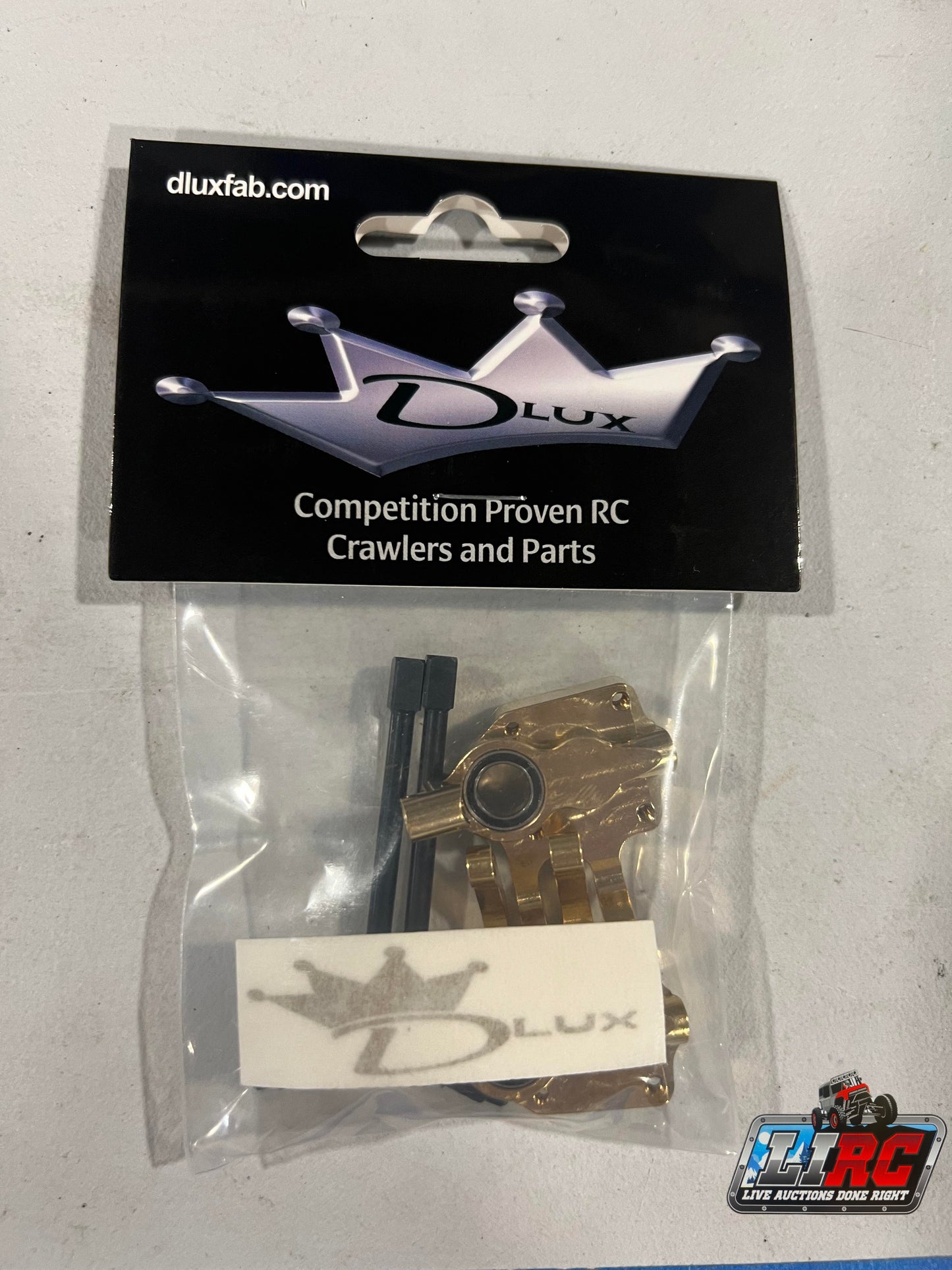

U-Joint Axle Shafts

Includes Aluminum or Brass knuckles!

Put an end to your broken stock CVD's

These shafts will allow about 60 degrees of steering. Other modifications and parts will be required to reach this steering angle. For example: Modifying stock steering stops, new tie rod, and possibly a longer servo horn, possibly more will be required, depending on how far you want to go, and what parts you already have.

Each purchase includes two u-joint axle shafts, two knuckles in your choice of material, and two ball bearings. You will need to reuse one of your existing bearings on each side. *No portal covers included*

Brass knuckles weigh 44.5g/pair
