    Puller Pro Stubby

    High Power, High Torque, High Performance, Smooth Startup!
    When you need the smoothest brushless motor on the rocks, the Puller Pro Stubby v2 delivers! Perfectly suited as a drop in motor for any rock crawler that uses 540 size motors, yet the Puller Pro Stubby v2 is shorter and lighter than other brands without sacrificing power or torque! It is designed for scale builds, trail riding, and competitive crawling.

    Improvements from v1 include better drag brake, adjustable and more accurate sensors, better performance in reverse rotation rigs, beefier solder tabs for lower resistance, and a sideways oriented sensor port for tight installs.

    To prevent motor damage, be sure that screws are not inserted more than 3.5mm into the mounting holes.

    Features:
    • Four pole 18mm diameter x 16mm length rotor
    • Twelve slot stator
    • 13g phase wires with 4mm bullets installed
    • Oversized bearings
    • Sensored with adjustable timing
    • Waterproof sensor board
    • Includes sensor wire
    Specs:
    • Shorter than a 540 motor
    • 25mm mounting pattern
    • M3 mounting screws
    • 3.175mm shaft
    • 36mm diameter
    • 45mm length
    • 164g (5.8oz) with wires
    • 50,000 rpm max

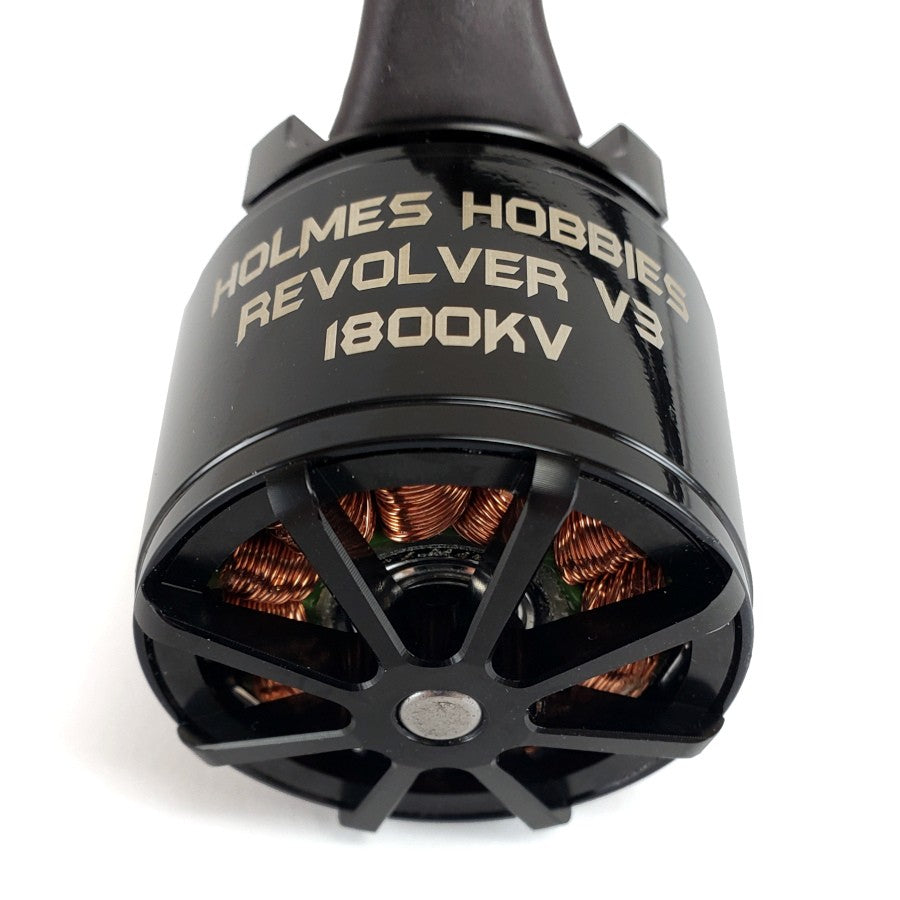

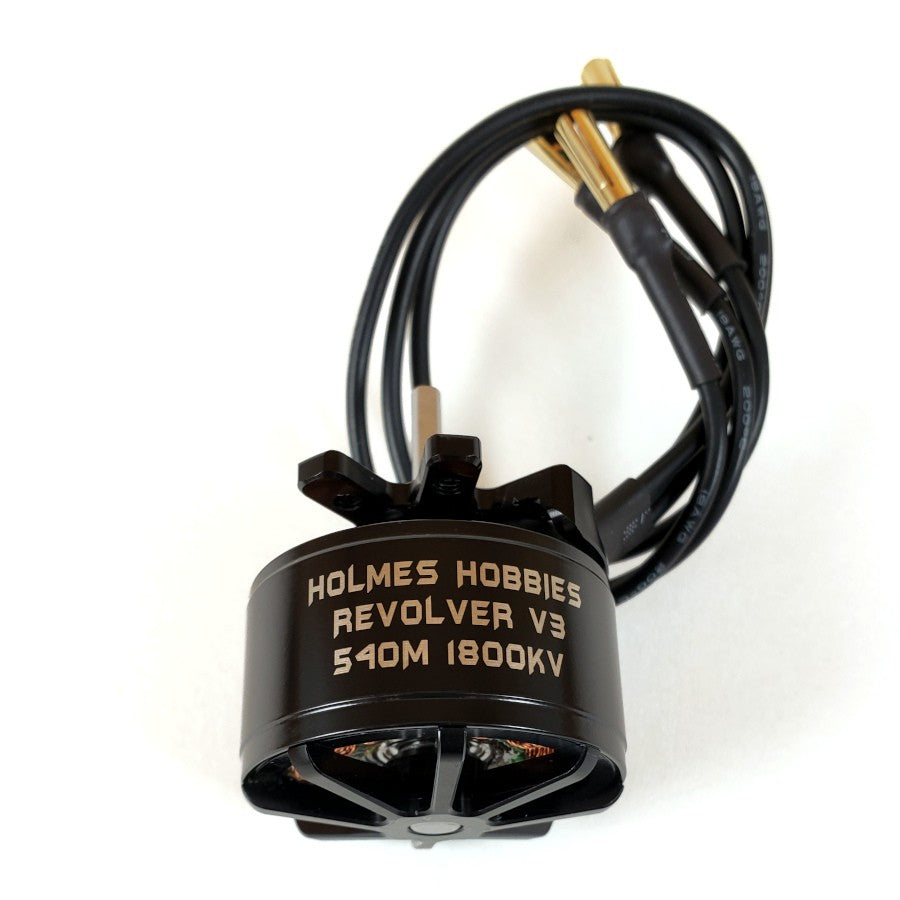

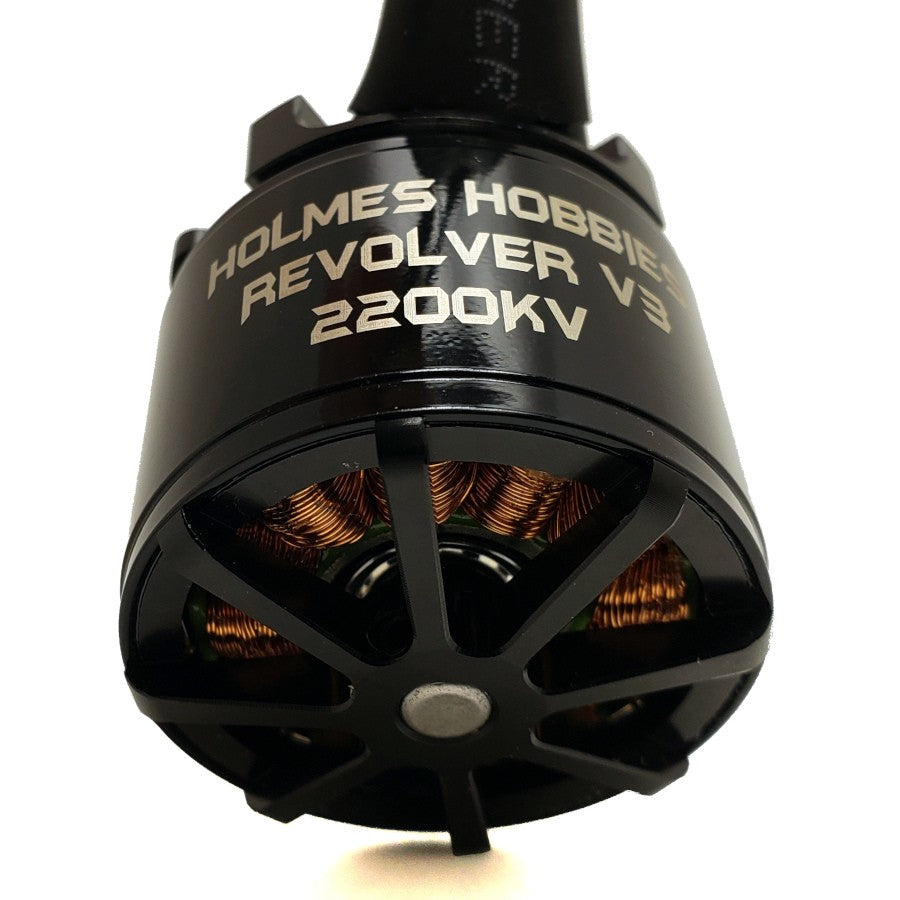

    Revolver V3

    Do you need a small and light motor for your vehicle, but do not want to sacrifice torque? Do you want the finest sensorless brushless low speed control? The Revolver 540 is an extremely torque dense and lightweight choice with exceptional startup and feel that rivals brushed motors!  The 540 model is two times more powerful than the "Snubnose 540" model, and provides an unmatched torque-dense driving sensation similar to a diesel engine.

    Now the V3 has more mounting positions, beefier wire retainer, and thicker back iron. The magnetics changes give all models more torque, drag brake, and static hold! If you currently run a Revolver Classic, then you have already experienced the force of v3 magnetics. Improved rpm lock and anti stall characteristics make these a real pleasure to drive with modern Castle Creations and Holmes controllers!

    To prevent motor damage, be sure that screws are not inserted more than 3mm into the mounting holes.

    Applications:

    • 1:10 scale Trail and Scale rigs (SCX10, SCX10.2, SCX10.3, Wraith 1.9, Enduro, TRX4 Sport,TrailFinder 2, etc..)
    • Competitive RC Rock Crawling (RECON G6; SORRCA; WRCCA; etc..)
    • Educational, Recon, or Battle Robots
    • 540 is recommended for "rock racers" and 2 speed vehicles, such as the TRX4, Wraith, Bomber, etc...

    Features:

    • Exclusive Holmes magnetics offer buttery smooth industry-leading startup without sacrificing torque
    • Our unique V3 housing has smaller volume and weight compared to simple "rebranded" airplane motors
    • Magnetic retaining system reduces risk of thrown magnets in the worst of conditions
    • Bolts up to standard "540" mount
    • Small and light, yet higher torque than 540 brushed motors
    • 1/8" shaft fits common R/C pinions
    • 200mm 14ga silicon motor leads with 4mm bullets

    Specs:

    • Brushless DC Outrunner Motor
    • 14 pole 12 slot stator
    • 2-4S LiPo voltage
    • 1/8" D shaft output (standard 540)
    • 25mm mounting pattern for M3 screws (standard 540)
    • 150g with wires
    • 35.56mm diameter x 37.5mm long
    • 28x20mm stator

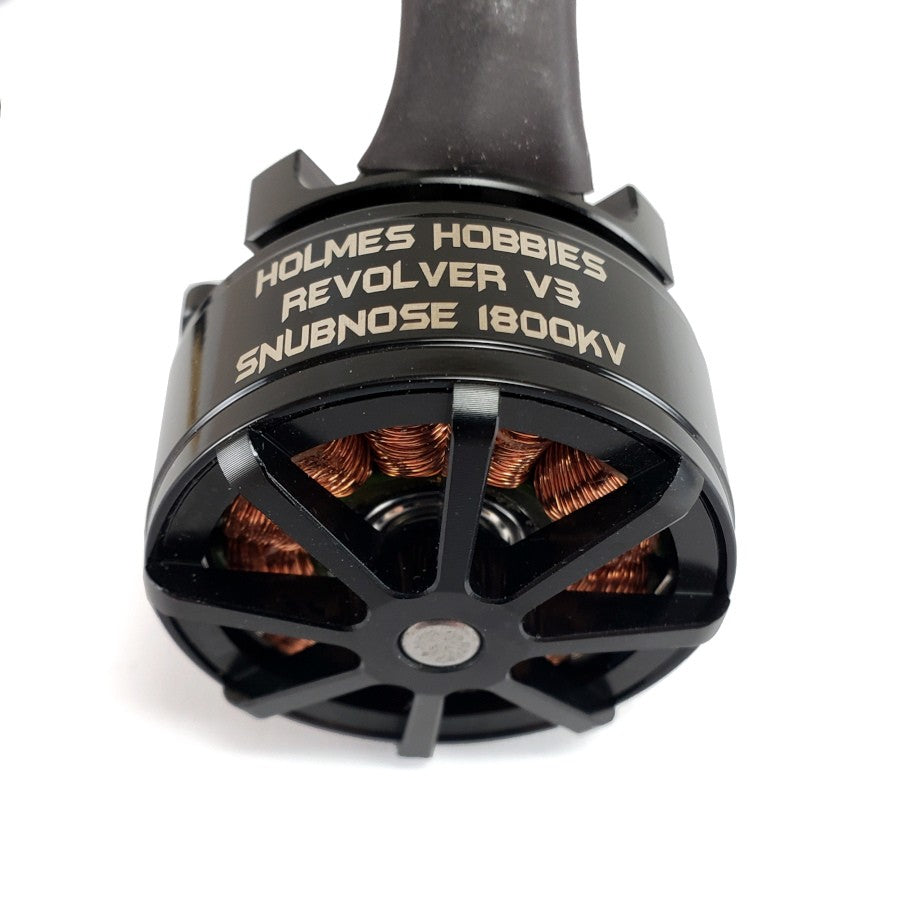

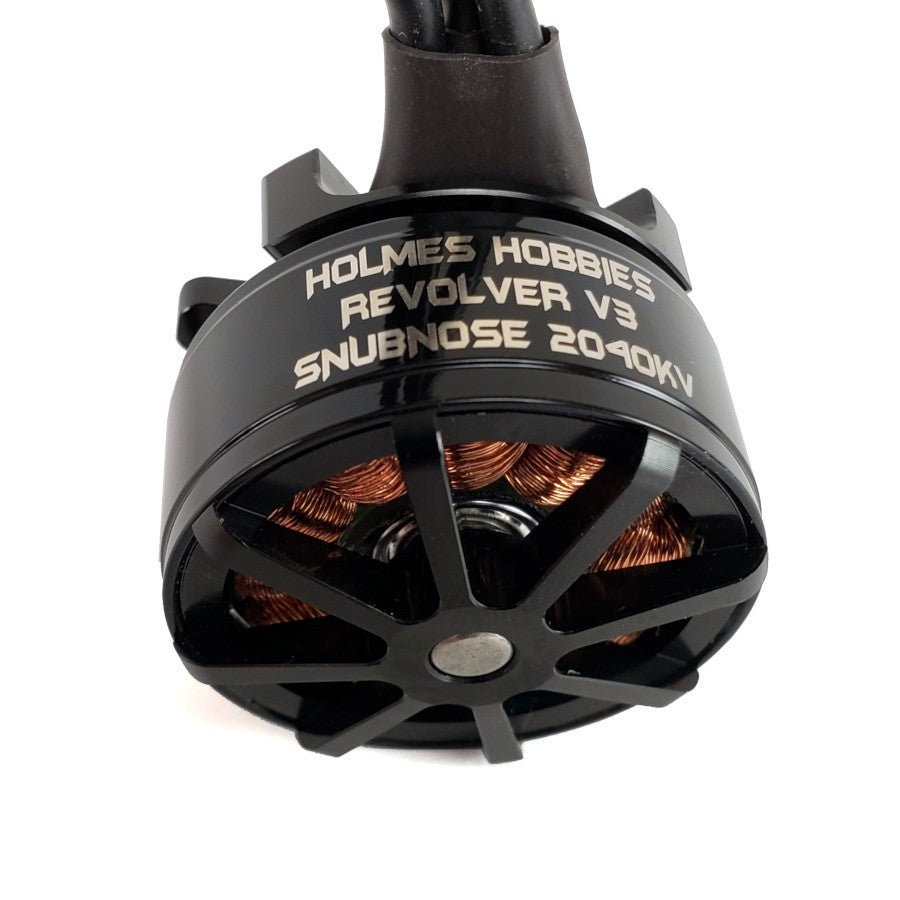

    Revolver V3 Snubnose

    Do you need a small and light motor for your vehicle, but do not want to sacrifice torque? Do you want the finest sensorless brushless low speed control? The Revolver 540 is an extremely torque dense and lightweight choice with exceptional startup and feel that rivals brushed motors!  The Snubnose model is 1/2 the torque of the Standard but is fantastic for lightweight vehicles needing a lower CG.

    Now the V3 has more mounting positions, beefier wire retainer, and thicker back iron. The magnetics changes give all models more torque, drag brake, and static hold! If you currently run a Revolver Classic, then you have already experienced the force of v3 magnetics. Improved rpm lock and anti stall characteristics make these a real pleasure to drive with modern Castle Creations and Holmes controllers!

    To prevent motor damage, be sure that screws are not inserted more than 3mm into the mounting holes.

    Applications:

    • 1:10 scale Trail and Scale rigs (SCX10, SCX10.2, Wraith 1.9, Enduro, TRX4 Sport, etc..)
    • Competitive RC Rock Crawling (RECON G6; SORRCA; WRCCA; etc..)
    • Educational, Recon, or Battle Robots
    • 540 Snubnose is NOT recommended for "rock racers" and 2 speed vehicles, such as the TRX4, Wraith, Bomber, etc...

    Features:

    • Exclusive Holmes magnetics offer buttery smooth industry-leading startup without sacrificing torque
    • Our unique V3 housing has smaller volume and weight compared to simple "rebranded" airplane motors
    • Magnetic retaining system reduces risk of thrown magnets in the worst of conditions
    • Bolts up to standard "540" mount
    • Small and light, yet higher torque than 540 brushed motors
    • 1/8" shaft fits common R/C pinions
    • 200mm 14ga silicon motor leads with 4mm bullets

    Specs:

    • Brushless DC Outrunner Motor
    • 10 pole 12 slot stator
    • 2-4S LiPo voltage
    • 1/8" D shaft output (standard 540)
    • 25mm mounting pattern for M3 screws (standard 540)
    • 94g with wires, 79g without
    • 35.56mm diameter x 27.4mm long
    • 28x10mm stator

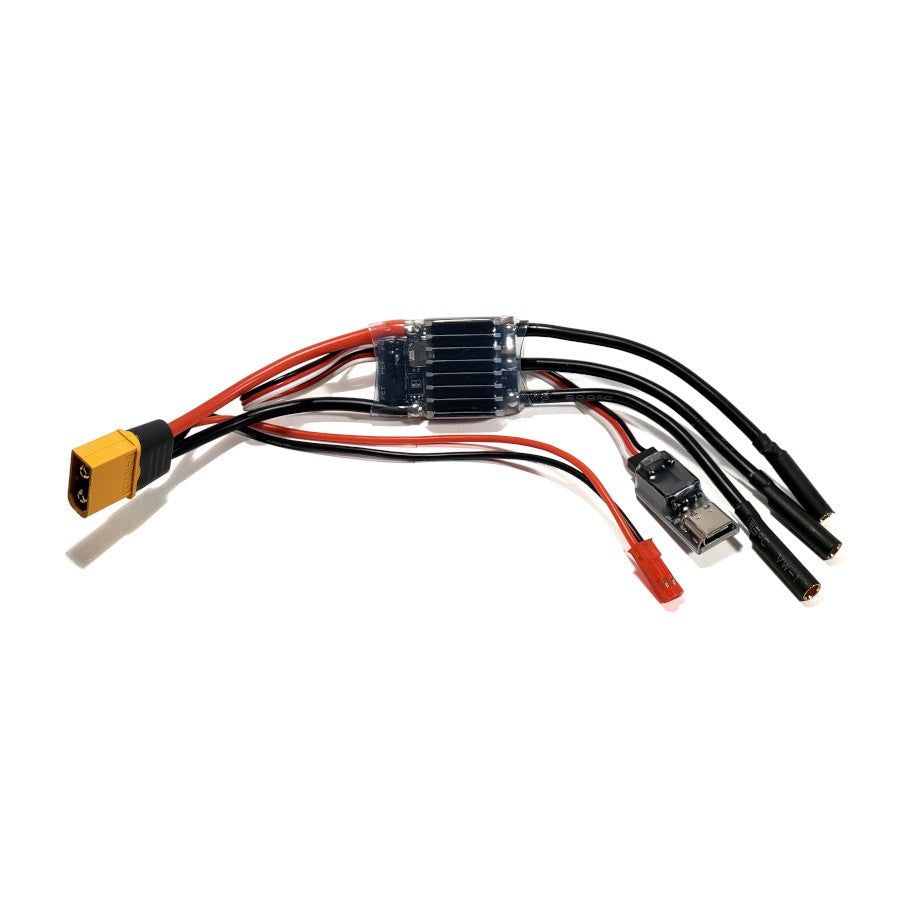

    Crawlmaster Mini V3 Rock Crawler ESC RTR

    The CrawlMaster Mini ESC is designed for the needs of RC Rock Crawlers! It harnesses the power of 32 bit technology to offer the smooth, quiet, and torque dense driving you desire in an extra small package! The ESC is soldered and ready to plug and go!  It is conformal coated for water resistance, but we recommend extra coating with CowRC's Cow-Formal if you plan to submarine the ESC.

    RECOMMENDED USE:

    • 1/10th and smaller Single speed Trail, Scale, and Rock Crawlers such as TRX4 Sport, SCX10, Element Enduro, etc..
    • Recommended 8lb limit, subject to gearing, driving style, terrain, etc.
    • Recommended 1800kv limit for 4s use
    • NOT recommended for two speed vehicles, rock racers, tow rigs, and other high load installations.

    FEATURES:

    • 32 bit processing power unlocks advanced algorithms and future upgrades
    • Exclusive Sinewave Startup (like FOC) but open system and compatible with all motors
    • Silent operation with most motors, inaudible switching frequency
    • Intelligent RPM lock at low speed for unmatched control when it matters most
    • Regular throttle above low speed operation for torque control and less broken parts at speed
    • No on/off switch to fail. Plug it in and go!
    • Overcurrent, temperature, stalled rotor, and throttle loss protection
    • Automatic cell detection and low voltage protection for LiPo battery
    • Ultra smooth throttle and strongest drag brake out of the box

    SPECS

    • 2 to 4s lipo (20v max)
    • "40amp" package, 25 amp continuous
    • size 39x26x11mm board with heatsink
    • 39 grams fully built
    • 1800kv outrunner recommended limit on 4 cell lipo
    • 2250kv outrunner recommended limit on 3 cell lipo
    • 2700kv inrunner recommended limit on 3 cell lipo
    • 3 amp 7.4v internal BEC
    • xt60 battery plug
    • jst aux power plug
    • 4mm motor plugs
    • Conformal coating for water resistance
    • USB programmer included

    Programmer and USB driver files download: Holmes Programmer
